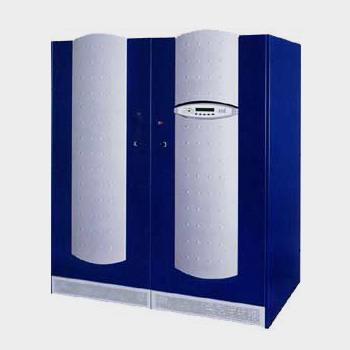

JOVYSTAR-Mega Series
MEGA-XXXK
MEGA-XXXK

JOVYSTAR(Mega Series)

MEGA-XXXK

适用场所
  • 监控保全系统
  • 网路系统及伺服器材
  • 医疗及安全紧急逃生设备
  • 各种工厂设备及工业应用
  • 各种资料处理与电讯卫星系统
  • 其他不容许断电之贵重设备及工作环境
  • 标准制造容量 :
    160/200/250/300/400/500/600 kVA
  • 并联复置容量 :
    5200 kVA

产品特色
  • This means that the JOVYSTAR delta is the optimal solution, as great reliability of the systems is our top priority. Our entire organisation and 55 years of experience in power supply technology stand for this.
  • The JOVYSTAR delta is a real on-line system (double conversion, permanent conversion),it therefore protects against all power faults and power failures.
  • The JOVYSTAR delta is available from 8,5kVA-125kVA. In units up to 32kVA, the batteries for short autonomy periods can be integrated in the UPS housing. The display and operating elements ao the JOVYSTAR delta have been designed ergonomically.
  • This means that the JOVYSTAR delta is the optimal solution, as great reliability of the systems is our top priority. Our entire organisation and 55 years of experience in power supply technology stand for this.
  • Output isolating transformer
  • Input-output insulation (operating from inverter)
  • Manual By-pass
  • Low harmonic distortion rejected into the mains
  • Automatic battery Test
  • IGBT technology for high frequency commutation
  • High crest factor
  • Capability of supplying distorted loads, containing output voltage distortion
  • up to 6 units in parallel redundant configuration
  • RS 232 - RS 485 serial interfaces
  • High instantaneous overload capability
  • High MTBF (>150.000h)
  • Low MTTR (<0,5h)
  • High efficiency starting at 25% load
  • Easy installation and maintenance; total accessibility from the front
  • Reduced dimensions
  • Easy to use and manage, with piloted start-up and friendly diagnostic
  • SNMP
  • Control software for WINDOWS®
  • These systems are manufactured in accordance with the strict quality guidelines as defined by DIN ISO 9001.
规格说明
Technical Data
Connecting voltage 3x400V/230V +/1%
Mains frequency 50Hz/60Hz+/-5%
Output voltage 400V/230V 3ph., adj. to 380V/220V 3ph.
Tolerance of output voltage alternation from 0 to 100% +/- 5%%
battery operation 50Hz/60Hz +/-,001Hz
mains operation synch. range is 2%
Power factor (output) 0,8ind. 125%-10min. 150%-1min.
Overload 200% 100ms 2000%-20ms
Distortion
Temperature range 0℃ ... +40℃
MTBF >100000h
Crest factor 3
Operating mode on-line continuous conversion
Computer interface IP 20
Protection degree F acc. DIN 40040
Humidity class EN 50091-2
Radio interference level Optinal
Hot-Standby-system Max. 4 times (optional)
Parallel-redundant system
Performance dependent data
Power 160kVA 200kVA
Input current, nom. 264A 330A
Input current, max. 317A 396A
Bat. charge current max. 60A 60A
Heat dissaption 11kW 13,9kW
Nominal output current 231A 289A
Short circuit current 370A 462A
Efficiency >92% >92%
Weight UPS 1015kg 1085kg
Dimensions (WxHxD) 1590mmx1820mmx930mm 1590mmx1820mmx930mm
Dim. 12pulse(WxHxD) 810mmx1820mmx930mm 810mmx1820mmx930mm
Dim. Battery (WxHxD) 1820mmx1600mmx800mm 1820mmx1600mmx800mm
Weight Battery cabinet 1660kg 1750kg
Autonomie time 7min. 6min.
Performance dependent data
Power 250kVA 300kVA
Input current, nom. 413A 496A
Input current, max. 497A 595A
Bat. charge current max. 80A 100A
Heat dissaption 17,4kW 20,9kW
Nominal output current 361A 434A
Short circuit current 578A 694A
Weight UPS 12505kg 1400kg
Dimensions (WxHxD) 1590mmx1820mmx930mm 1590mmx1820mmx930mm
Dim. 12pulse(WxHxD) 810mmx1820mmx930mm 810mmx1820mmx930mm
Dim. Battery (WxHxD) 2730mmx1600mmx800mm 2730mmx1600mmx800mm
Weight Battery cabinet 2630kg 2630kg
Autonomie time 9min. 6min.
Performance dependent data
Power 400kVA 500kVA
Input current, nom. 660A 825A
Input current, max. 792A 990A
Bat. charge current max 100A 100A
Heat dissaption 27,8kW 34,8kW
Nominal output current 578A 722A
Efficiency >92% >92%
Weight UPS 1540kg 2021kg
Dimensions (WxHxD) 1800mmx2100mmx930mm 3540mmx2100mmx930mm
Dim. 12pulse(WxHxD) 895mmx1600mmx9300mm 895mmx2100mmx930mm
Dim. Battery (WxHxD) 3640mmx1600mmx800mm 3640mmx1600mmx800mm
Weight Battery cabinet 3500kg 3500kg
Autonomie time 7min. 5min.
本公司保有规格变更权力,规格若有修改时,恕不另行通知.
