Dry type Mold Cast Resin Transformer
Dry type Mold Cast Resin Transformer
Dry type Mold Cast Resin Transformer

IP00 SM/EM/TM/FM Series

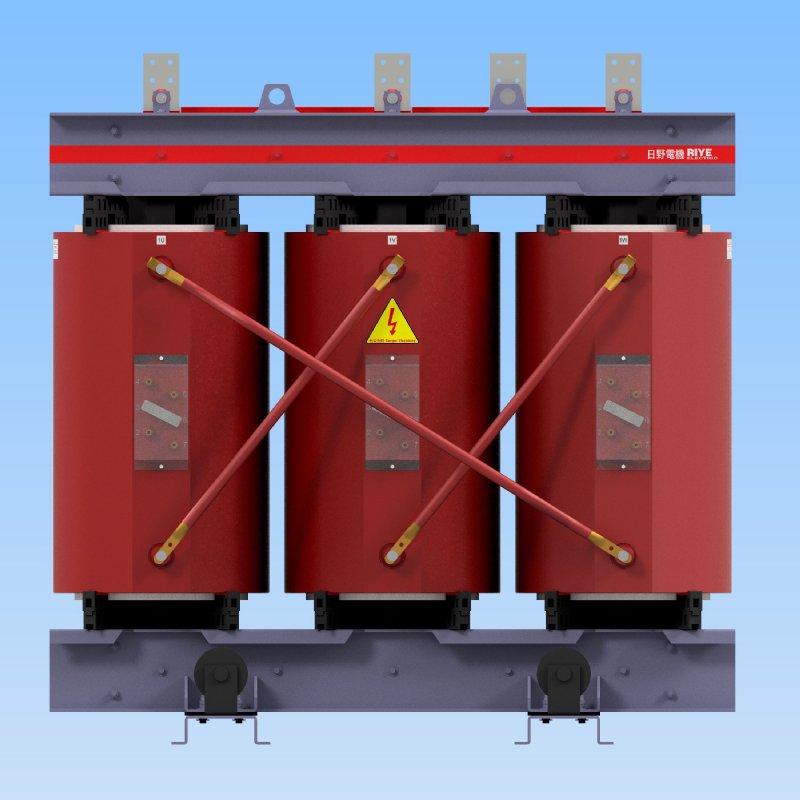

Three phase Cast Resin High Voltage Distribution Transformer

Applications
  • Three Phase kVA Sizes :
    3~3000 kVA
  • Voltage level : 3.3,6.6,11,22,33kVA
View More Details
Features
  • Mold Cast Resin Transformer are made by resin vacuum casting for indoor application
  • In accordance with standard IEC or the national standards of each country
  • Power capacity: According to the recommendation of each country's national standards
  • Temperature based on IEC726
  • High voltage winding: F class
  • Low voltage winding: F class
  • Bottom entry gland plates for HV & LV terminations
  • Naturally cooled(AN)
  • Tap changer(Manual links)
  • Maintenance free
  • Cost saving
  • Fire resistant
  • Short circuit resistant
  • Fewer failures
  • Impulse voltage strength
  • Thermal shock resistant
  • Environmentally safe
  • Low noise
  • Compliant to IEC 726
  • ISO 9001-2015 Quality system authenticated
  • Made in Taiwan
  • Warranty:1 year


Specification
  • Single Phase kVA Sizes : 5,7.5,10,15,20,30,37.5,50,75,100 kVA
  • Three Phase kVA Sizes : 5,7.5,10,15,30,50,75,100
    112,125,150,200,225,300,400,500,600
    750,1000,1250,1500,1750,2000,3000kVA
  • Voltage level : 36kV/24kV/12kV or below
Safety/Quality Approvals
Built in accordance with CNS,EN,IEC726,BS-171 standards
