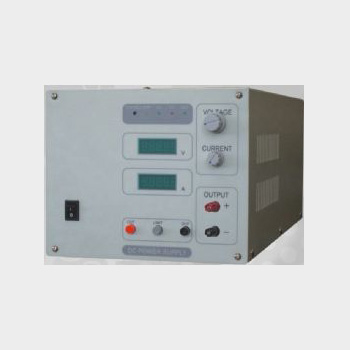

DC POWER SUPPLY-GC Series(1/2 Rack)

100~600Watts GC Series

Applications
  • Industrial DC power supply
  • Precise plating
  • Electrolytic capacitor
  • Electric component service life testing
  • R&D division
  • Electrochemistry experiment
  • Resistance industry
  • TFT-LCD module industry
Capacity:
  • Input voltage : AC 110 or 220V
  • Maximum output voltage: DC 0~2000V
  • Maximum output current: DC 0~30A
  • Maximum power output: 100~600Watts

Features
  • International certificate:
    ISO 9001:2015 : We have passed the ISO 9001:2015 certificate , and we believe the certificate speak for themselves
  • Advance voltage regulation circuit:
    Transistor voltage regulation
  • High stability/low electrical noise and ripple
  • Preset voltage function
  • constant voltage mode and constant current mode operation function
  • CV/CC indicator light
  • Digital LED display function:
    Three digits voltage display(digital error <=0.5% +/-2digits)
    Three digits current display(digital error <=0.5% +/-2digits)
  • Protection device :
    Reversed polarity protection
    Over voltage protection
    Short circuit limited protection
    NFB switch protection
    Fan heat dissipation protection
  • Standard attachment:
    AC power line 1.5M X 1、DC output line1.5M X 1、Manual X 1
  • Optional device:
    RV : Remote Control output voltage
    RA : Remote Control output current
    Transistor overtemperature trip
    Timer program controlling function
    Short circuit trip protection
    External control output ON/OFF
    Function of voltage feedback compensation
    Current limiting
  • * Special specification and function can be customized

Specification
  • Constant voltage operation
    DC whole range output adjustment
    Line Regulation <=0.05%
    Load Regulation <=0.05%
    Ripple & Noise <=0.05%mVpp
    10 potentiometer output voltage adjustment
  • Constant current operation
    DC 0~15A whole range output adjustment
    Line Regulation<= 0.5%
    Load Regulation<= 0.5%
    Single potentiometer output current adjustment
