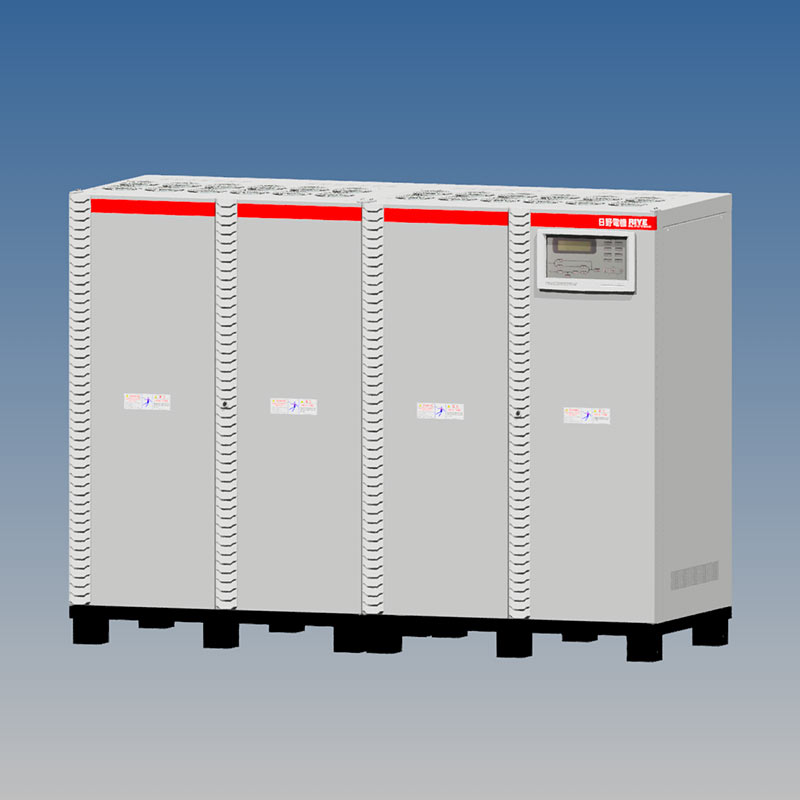

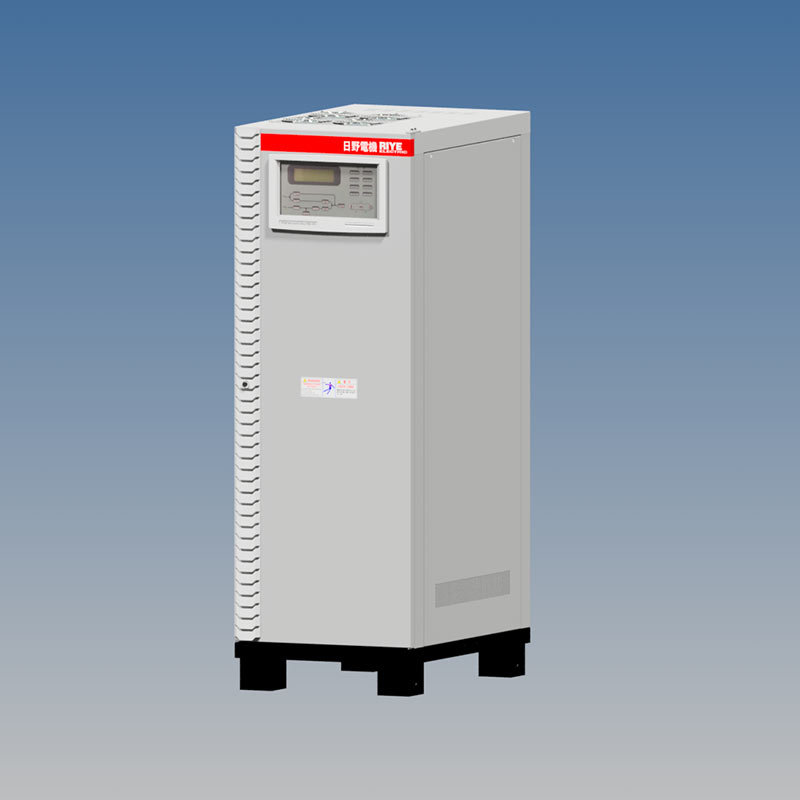

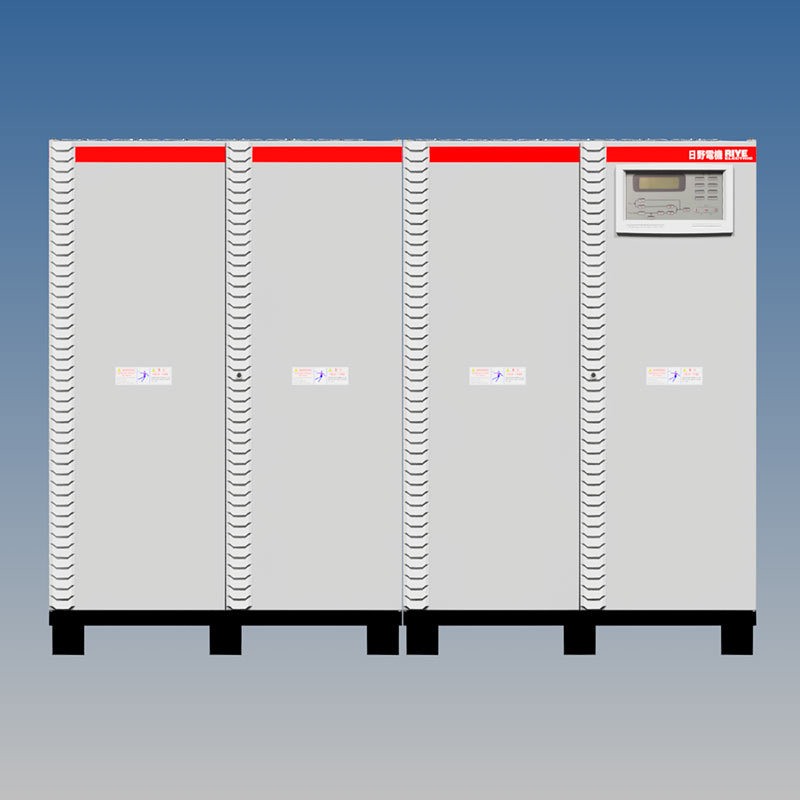

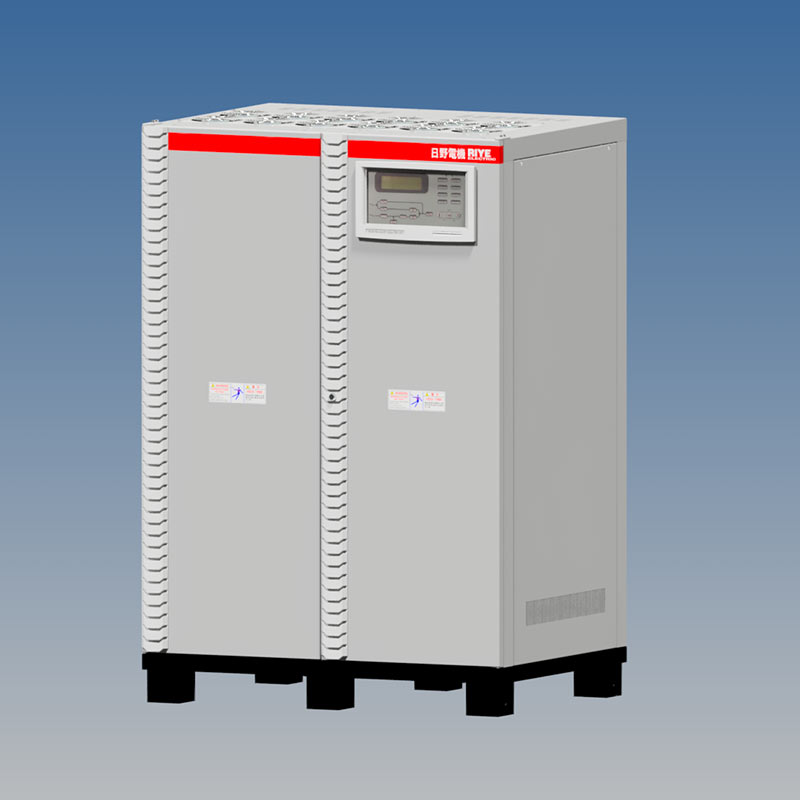

Industrial Grade-DS Series

DS-XXXX

Applications
  • Monitor security system
  • Medical equipment and emergency escape equipment
  • Internet system and server equipment
  • Each type of plant equipment and industrial application
  • Data processing and Telecommunications satellite system
  • Those precise equipment and working conditions that do not allow shortage
  • Capacity:
    10/15/20/30/40/50/60/80/100/120/160/200/240/300/320/400 kVA
  • In parallel :
    5200 kVA

View More Details
Features
  • Certificate:
    We have passed the ISO9001:2015 certificate , and we believe the certificate speak for themselves
  • Edge cutting Pulse Width Modulation technology，adopted high frequency、high efficiency DSP and IGBT
  • The best insulation design that can solve the problem，for instance，that cause by power system noise、flashing、earth leakage current
  • Special CPU design and comparable software technology that can be more stable
  • P&P Modular:　
    The circuits are separated to several modular that are convenient to insert and pull out .Because of the Plug & Play Modular，our UPS can be repaired and found out the problem inside rapidly
  • Phase independent inverter design，and can make sure the highest efficiency under circumstances of 100% unbalance load
  • Reliable input protection:
    No Fuse Breaker installed in each input circuit that can make sure the power will transfer by another circuit while the trip switch caused by rectifier or loading problem
  • Input Surge Protection:
    Input side has installed MOV protection device that can protect UPS and loading equipment from those damage，for instance，flashing、abnormal surge from nearby overload
  • To assure the safety and the operation of UPS，our UPS has perfect input design and fall off protection
  • Fool-proof design that can prevent the damage due to improper operation
  • Smart charging function that can prolong the battery duration effectively，and the optional large charging current can charge the large capacity batteries module rapidly
  • Smart and safe detection function that can detect the error from battery and can assure the safety of battery and do not have current outage
  • Cold start function:
    The UPS equipped with limited current circuit that can start up by battery without supply mains，and also can prevent from high input current that could damage the battery and the DC capacitor while battery connected with DC BUS
  • Smart control of the speed of fan:
    According to the loading condition ,the speed of fan can be adjusted automatically to prolong the duration and reduce the noise from fan
  • Reasonable separation design of wind tunnel:
    Control part and power part are designed as separated wind tunnel that can enhance the reliability of UPS and prolong the duration even it is operated in the severe environment
  • Optional multifunction that can satisfy all kind of your demands :
    Remote monitoring、phase monitoring、automatic announcement while malfunction、battery monitoring、automatic overhaul、SNMP and emergency halt function
  • Installed AVR that can adapt wide range of input power
  • Automatic battery charging while supply mains input normally
  • Miniature monitor panel(Optional)
  • Multiple output interface that can connect each type of the loading conveniently
  • The hot swapping batteries that allow user to change the batteries conveniently under circumstances of continuous power
  • RS232 interface can exchange the data between UPS and computer
  • Start up by DC
  • Eco-environment design
  • Frequency automatic detection function
  • 12 pulse full wave rectifier(Optional) that can reduce harmonic current in UPS
  • Parallel Redundancy that can offer more reliable power supply system to our uesr
