Dry Type Transformer

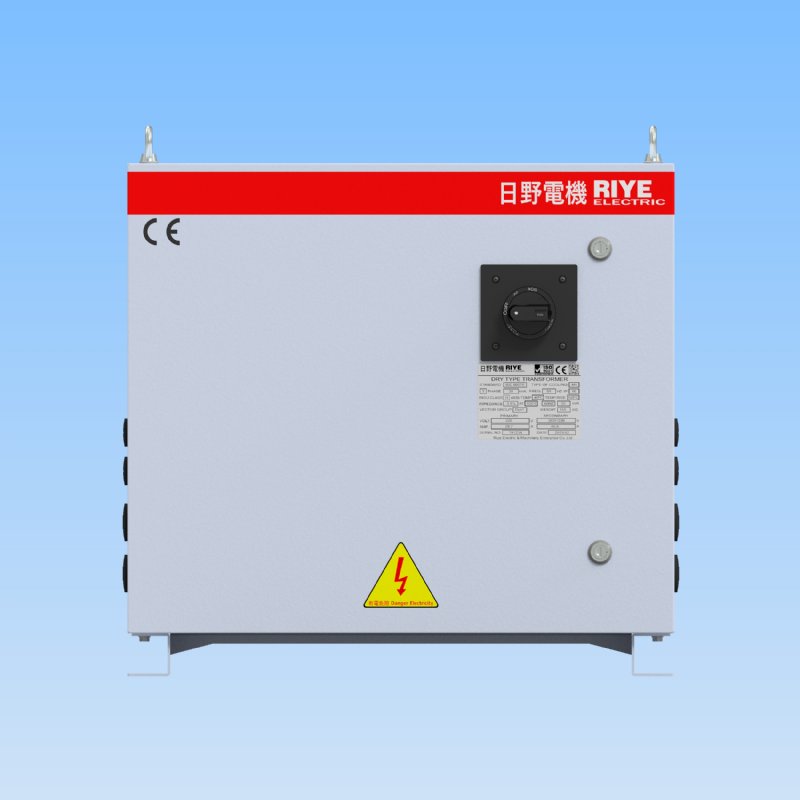

IP54 High Protection Enclosure

Applications
  • CNC machine
  • Iron works
  • Food processing factory
  • Chemistry factory
  • High-tech electronic factory
  • For harsh environment used
Capacity:
  • Voltage level: 600V or below
  • Single phase: 3~150kVA
  • Three phase: 3~500kVA
Our series are complete and are able to customize.

View More Details
Features
  • Certificate:
    Whole series have passed the CE certificate , and can make sure the safety of the equipment.
  • ISO9001 :
    We have passed the ISO9001:2015 certificate , and can make sure the consistency of the quality.
  • Our product with IP54 protection:
    When the environment exists the dust、iron filings、dirt、cotton or the situation of water splash and spray that IP20 protection can not withstand,this product with IP54 protection can meet your requirement. IP54 protection can enhance the safety and maneuverability in those severe environment conditions.
  • The first numeral〝5〞in IP54 means:
    Complete protection against contact with live or moving parts inside the enclosure. Protection against harmful deposits of dust. The ingress of dust is not totally prevented, but cannot enter in an amount sufficient to interfere with satisfactory operation of the machine.
  • The second numeral〝4〞in IP54 means:
    Water splashed against the machine from any direction shall have no harmful effect.
  • High quality of the material:
    The coil adopts outstanding H class insulation material and have the remarkable characteristics of high degree endurance、low noise、fire prevention、avoid electric shock、non absorbency.
  • Outstanding structure:
  • Structural strength is strong enough to cope with the flashing、surge and electromagnatic force from impulse voltage and shortage.
  • H class insulation:
    When the environment degree is under the circumstances of 40 ℃ and average degree below 35,under rated capacity and rated frequency,the operation can meet the H class insulation(Up to 180℃).
  • Convenience :
    Our transformer can de designed as 50/60HZ,variety input and output voltage that can meet the equipment demand.And the external has the CB(Circuit Breaker) that is convenient for operating.
  • High quality product:
    Our transformer casing has the switch box which front door is the open design,and is easy for our client to install on the right or left side from the switch box.This outstanding design is convenient for repairment and maintenance and the specific design can isolate the heat from the inner components to make sure the service life.Our transformer is easy to install and repair,and the product has small size and light weight.It can be installed in where the space is not sufficient enough.Our product produces under strict quality control and before leaving the factory,all of our products will go through the voltage insulation test、open circuit test、high frequency test、output adjustment and voltage regulation test to make sure the best quality and safety.
